High performance stamping press with perfected mass balancing system and adjustable stroke

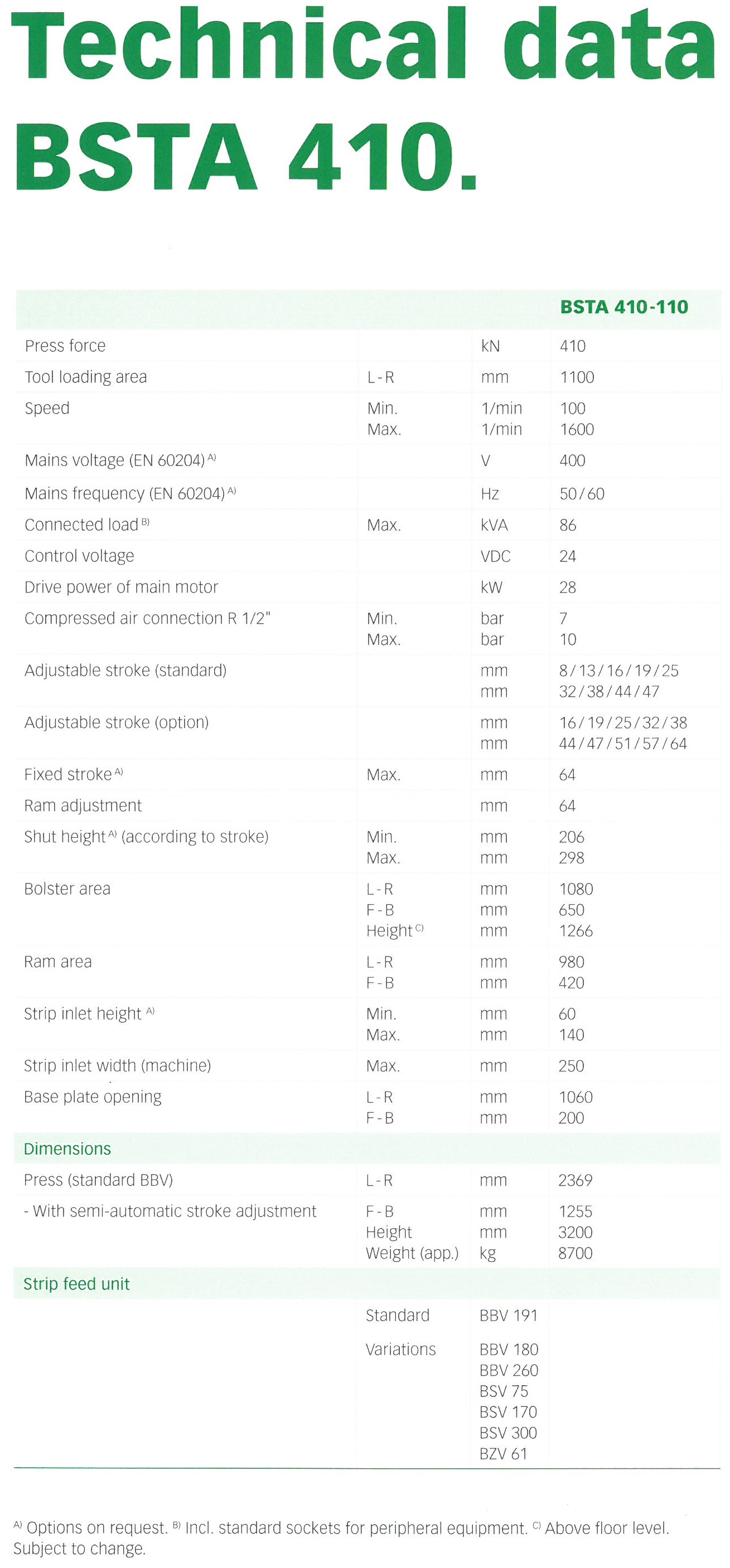

Datasheet Brochure

Product Description

Bruderer High Performance Stamping Press BSTA 410

BSTA 410 – Press force 410 kN

Speeds ranging from 100 to 1600 spm.

Adjustable stroke with mass balancing system together with latest control technology for a multitude of applications and a wide variety of stroke heights

Thermoneutral ram-guiding system with tilting point control at strip level for long tool life and optimum part quality

Ram adjustment during operation under production conditions for an optimized tool set-up

Powerful clutch and brake unit for improved first and last strikes and therefore reduced waste

Micro-tolerances maintained in the bottom dead center (BDC) for increased process stability

Precision engineering and the unique BRUDERER drive and lever system for improved reliability and durability across the whole mechanical system

Integrated measuring and monitoring function for improved process optimisation by means of simple control system usability

Easy attachment of peripheral devices for quicker integration and maximum productivity

Additional Information

Manufacturer

Bruderer
