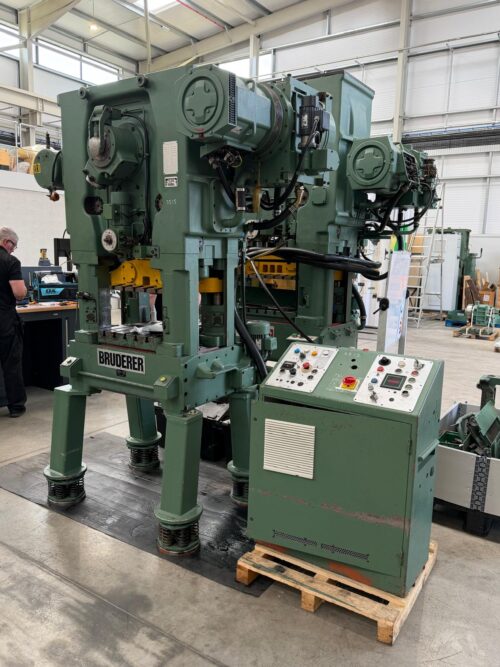

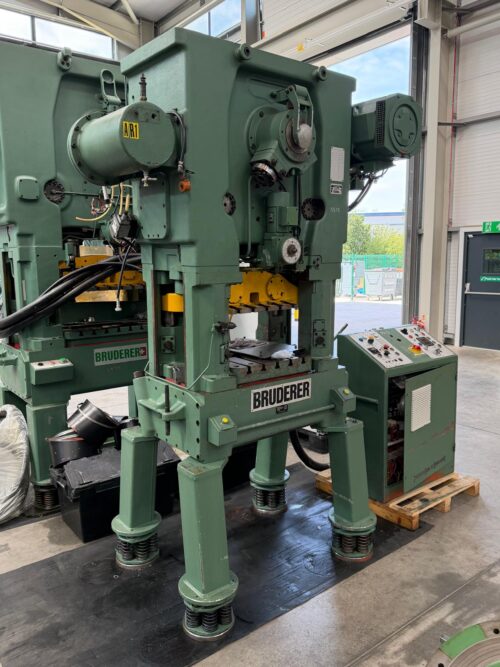

One used Bruderer BSTA 25 high speed punching press.
25 tons nominal capacity.
Adjustable stroke 13 to 38 mm.
Speed range 100 to 1500 SPM max.
Bolster area 540 mm x 530 mm.
Fitted with a single roll feed BBV 202/120 on right-hand side.
Max width of strip 200 mm.
Feed pitch 120 mm, feed angle 180°.
Electrical control cabinet.
Oil cooler.
Air damper feet

Machine speed range stated is approximate; production rates are dependent on load, material and component configuration.

Additional Information

Pre-owned

yes
